ESWT 16HZ Horses Shock Wave Therapy Equipment

Veterinary instrument horses equine shock wave therapy equipment for horse with 5pcs different size of tips

Extracorporeal shock wave therapy (ESWT)has become an emerging new technology for treating musculoskeletal problems, soft-tissue injuries and bone injuries in horses. ESWT is non-invasive, used to stimulate healing to return horses to a level of fully sound, useful activity without recurrence of disease.

Shock waves are commonly used for suspensory ligament disease, tendon disease, back pain, bone contusion, splint pain, tibiofibular fracture and scapular syndrome. For this type of surgery, the horse is usually a sedative and usually lasts no more than 30 minutes. The treated area is cleaned and a gel is applied to aid in the transmission of sound waves from the transducer probe. The transducer is then applied to the area and a high energy sound wave is emitted. The impact strength and the appropriate number of impulses are determined by the affected area. In general, the deeper the affected tissue, the more pulses and energy are required.

Currently, most racing jurisdictions prohibit the use of shockwaves within 5-7 days of the race.
In addition to proper rest and rehabilitation, shock waves can be a very useful adjunctive therapy in the case of many lameness and orthopedic diseases.

Shock waves have been shown to increase local blood flow with direct cellular effects and activated osteogenic factors. Direct cellular effects include; increased tissue regeneration, induction of new blood vessel development, and increased blood supply. It is also recognized that shock waves provide pain relief. The level and duration of pain relief has not been confirmed. Shockwave therapy is used to treat plantar fasciitis, heel spurs, tennis elbow, non-healing fractures and tendonitis.
Up to 80% improvement has been confirmed in tennis elbow and heel spurs.

How is the treatment administered?
While a veterinary clinic can administer ESWT to inpatients, most practitioners take the therapy to their equine clients. The horse remains standing in his stall and is usually lightly sedated to keep him from moving excessively during the treatment. A veterinarian uses a portable unit to generate high-pressure acoustic (sound) waves. The apparatus is held against the injured area (bone, joint, tendon, or ligament) for about twenty minutes. A typical course of therapy involves three treatments at three-week intervals.

Advantage and Specification of Shockwave : Equine shockwave therapy machine for horses

• Long lifespan acoustic wave applicator, support at least 2 million shots before maintenance needed

• 5 pcs Ti-alloy made applicator, can fully transfer energy to patients.

• 8 inch color touch screen, easy to operate.

• Can continuously work over 20000 shots without break, so as to provide excellent treatment result

• 10 pre-set treatment protocols, and support user defined protocols

• Energy from 5mJ to 200mJ, adjustable per 5mJ as stepping (equal to 0.125Bar to 5Bar)

• Frequency from1Hz to 16Hz, adjustable per 1Hz as stepping

What happens to the tissues treated with this therapy?Equine shockwave therapy machine for horses

While the exact mechanism is not yet known, ESWT commonly leads to improved circulation due to blood vessel dilation in and around the injured area. Growth of new blood vessels has also been recorded.

Significant pain relief is almost immediately evident, although slight swelling and sensitivity may be noticed for a few days. ESWT also has a positive effect on the concentration of transforming growth factor beta 1, which stimulates cell activity. In addition, ESWT influences bone remodeling by thickening the outer layers and strengthening the cell network underlying joint cartilage.Equine s

Typical indication

Shockwave have been successfully used to treat many soft issue, muscle injury, tendon injury ect on horses and other animals. Equine shockwave therapy machine for horses

Typical indications:

• Suspensory Ligament Branch
• Collateral Ligaments Of Various Joints
• Nuchal Ligament
  Arthropathy / Cubarthrosis
• Muscle triger points – Sciatica, myositis, fibrosis
• Chronic Back Pain
• Hip And Elbow Dysplasia
• Tendinopathy Equine shockwave therapy machine for horses
• Painful Scar Tissue
• General Massage Equine shockwave th

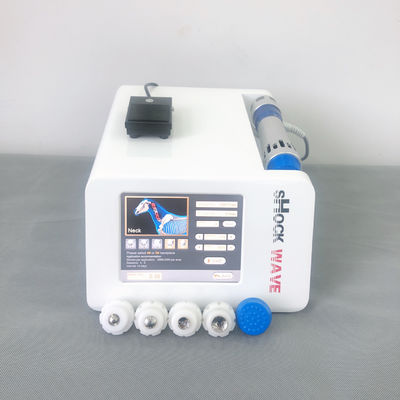

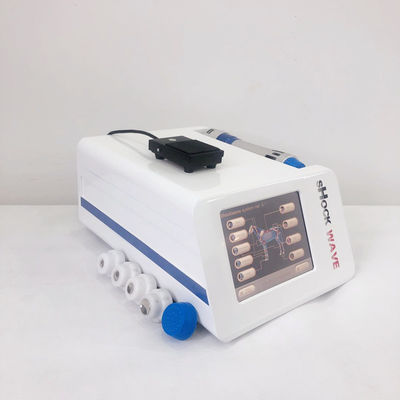

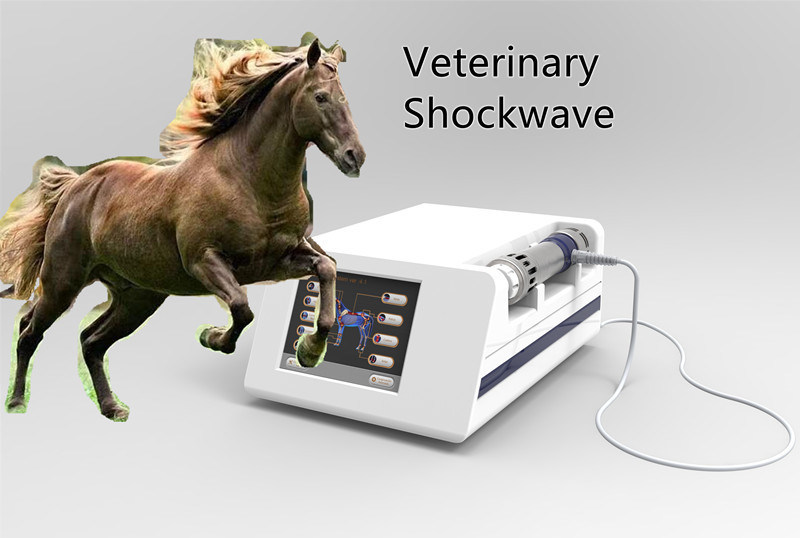

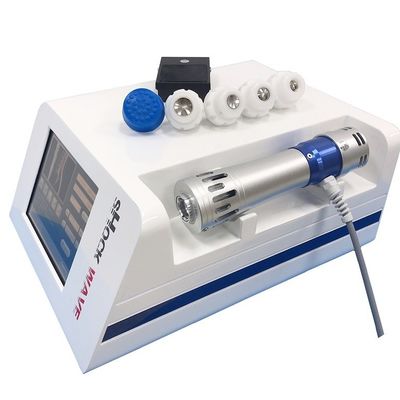

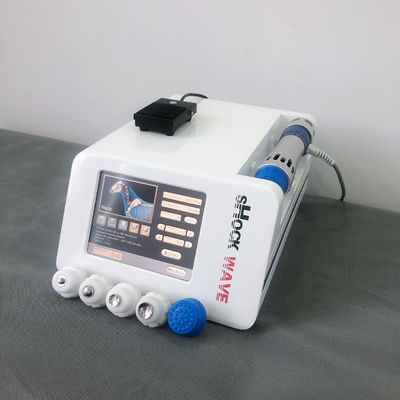

Product display :

Packing
